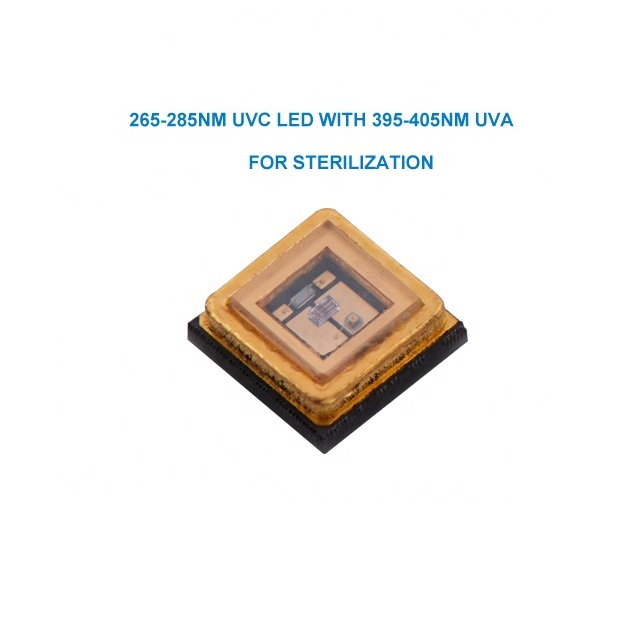

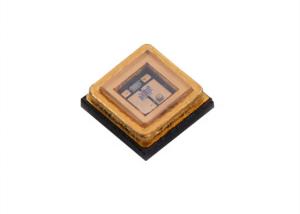

1W 265-285NM 3535 Disinfection UV-C LED COB CHIP 120 Degree 60mA(Max=80mA)

Product Categories

Phenson Lighting Tech.,Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1W 265285NM 3535 Disinfection UVC LED COB CHIP 120 Degree 60mAMax80mA
Brand: Phenson
Price: 1 USD

Brand Name : Phenson

Model Number : COB UV LED

Certification : CE ,Rohs

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Supply Ability : 10K/month

Product : COB UV LED

Chip Material : InGaN

Viewing Angle(°) : 120 Degrees

Optical Power : 6-12mW

IF : 60mA(Max=80mA)

Certificate : CE, RoHS

SUBSTRATE : ALN Coppering

LENS : QUARTZ GLASS LENS

Storage Temperature : -40 - 110℃

Voltage : 6-8V

Contact Now

1W 265-285NM 3535 Disinfection UV-C LED COB CHIP 120 Degree 60mA(Max=80mA)

Product description,

RODUCT NAME:	Hot sales 1W 265-285NM 3535 Disinfection UV-C LED COB CHIP
POWER DISSIPATION:	1W
VF:	6-8V
IF:	60mA(Max=80mA)
DESIGN ADVANTAGE	1,Quartz glass package
	2,High radiant flux
	3,Narrow Wavelength
	4,Inorganic & Nitrogen package
	5,Low thermal resistance

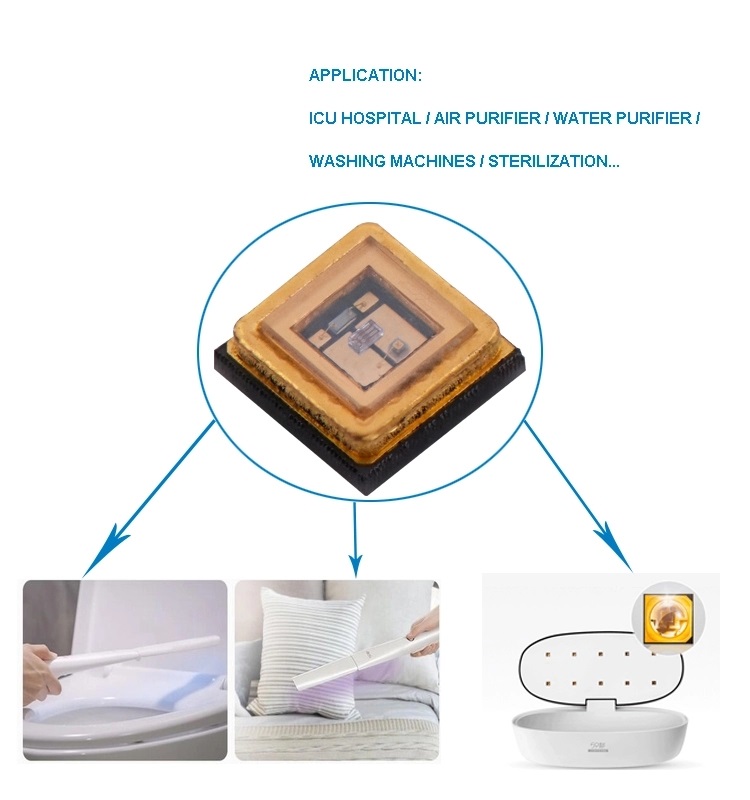

APPLICATION:	ICU Hospital
	Air purifier
	Water purifier
	Washing machines
	Sterilization...
CHIPS:	VERTICAL
CHIPS:	(LG or HPO)
WHOLE SIZE:	3.5*3.5MM
LENS:	QUARTZ GLASS LENS
VIEW ANGLE:	120 DEG
OPTICAL POWER:	6-12mW
SUBSTATE LOAD:	ALN COPPERING

1W 265-285NM 3535 Disinfection UV-C LED COB CHIP 120 Degree 60mA(Max=80mA)
